Production lines for technical insulation

Automated polyurethane foaming lines for refrigeration appliances and various technical insulation applications

In the manufacture of foaming lines for refrigerator cabinets and doors, Hennecke has made pioneering contributions to process and systems technology. For example, in the environmentally-compatible insulation of refrigeration appliances through the introduction of Pentane Process Technology (PPT). Today, Hennecke's refrigerator cabinet foaming lines and systems for the manufacture of insulated door elements ensure flexible implementation of a large part of the world's refrigerator production. Apart from meeting high environmental standards, the efficient systems also fulfil the strictest requirements regarding cost effectiveness, for example, due to highly efficient raw material utilisation and a comparatively low use of energy and space. Hennecke's many years of know-how in the area of refrigerator insulation guarantees the user reliable production and a faultless end product. Hennecke can also offer its customers sophisticated production systems and process technology for many other applications in the area of technical insulation using rigid polyurethane foam. These include production lines for the insulation of hot water boilers, water storage tanks and air handling units.

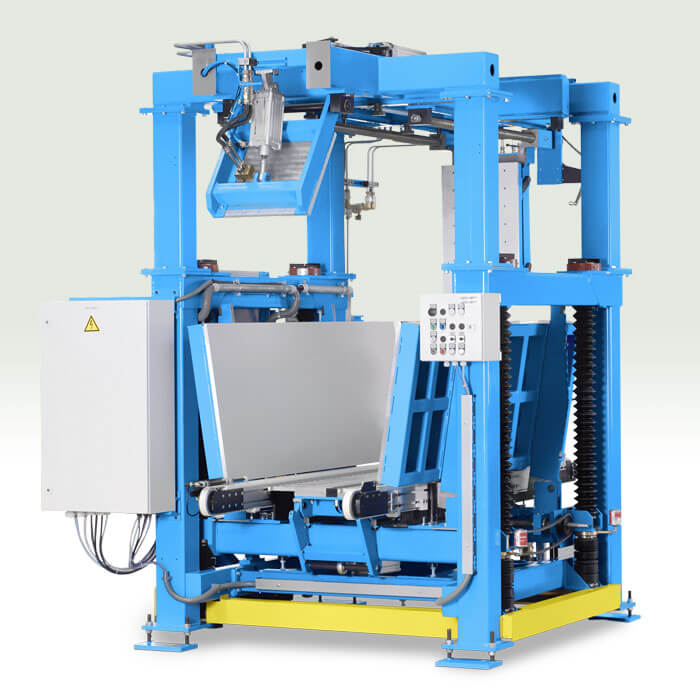

KGS cabinet foaming line

Modular systems technology for effectively insulating refrigerator cabinets

KGS

Modular systems technology for effectively insulating refrigerator cabinets

KGS systems technology is primarily used for the insulation of refrigerated appliance cabinets. A wide range of products can be made thanks to the flexible application possibilities and specific plant characteristics. This includes top-mount, bottom-mount or side-by-side equipment technology....

More Information
KGS cabinet foaming line

ROTAMAT

Systems technology for the automated production of insulated door elements for refrigeration appliances

ROTAMAT polyurethane foaming lines are the consistent implementation of the industry's demands for a highly automated, discontinuous production of insulated polyurethane door elements. ROTAMAT lines are mainly used for insulating door elements with rigid PU foam (e.g. in refrigeration equipment or air handling units). Another potential use is the manufacture of insulated polyurethane panels for varied applications. In ROTAMAT systems, the mould carriers rotate around the horizontal axis in a cyclical turning motion. In the operating station, the mould carrier is opened via a rocker after it has been unlocked. The operator removes the foamed door and inserts the new sheet metal door and inliner. The large opening angle of the mould carrier ensures ergonomic loading and unloading. Before starting the foaming operation, the lower part of the mould carrier is swung back into the horizontal position. The drum switches to the next position after the foam has automatically been poured into the open mould; the turning movement closes the mould carrier. Hennecke's expertise in this field guarantees the user efficient raw material utilization combined with low energy consumption. Moreover, the lines require much less space than rotary table systems and allow an extremely quick mould change.

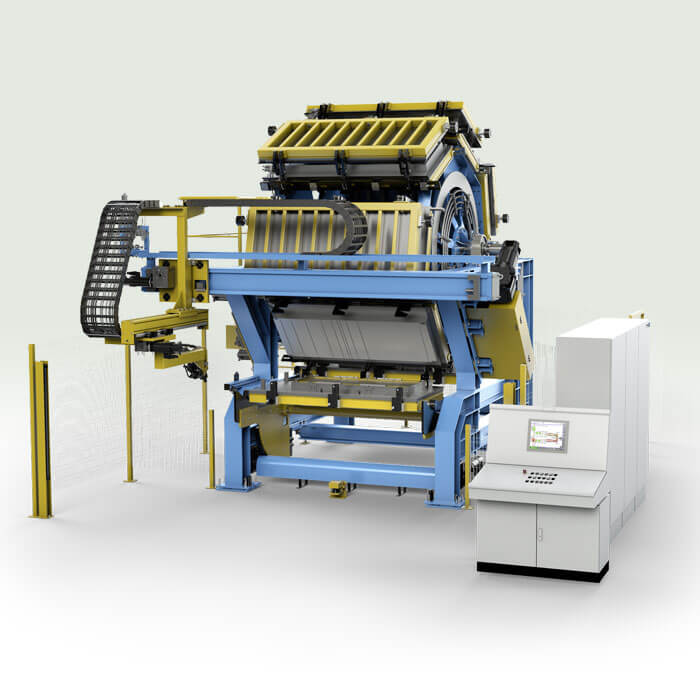

ROTAMAT EF

Highly automated and raw material-efficient production of insulated door elements

Tailored to meet your individual production requirements, ROTAMAT EF lines are equipped with five, six, seven or eight mould carrier places. When using highly reactive foam systems, quick rotational movement is necessary because the mould carrier is also closed by this operation. A suitably...

More Information
ROTAMAT EF

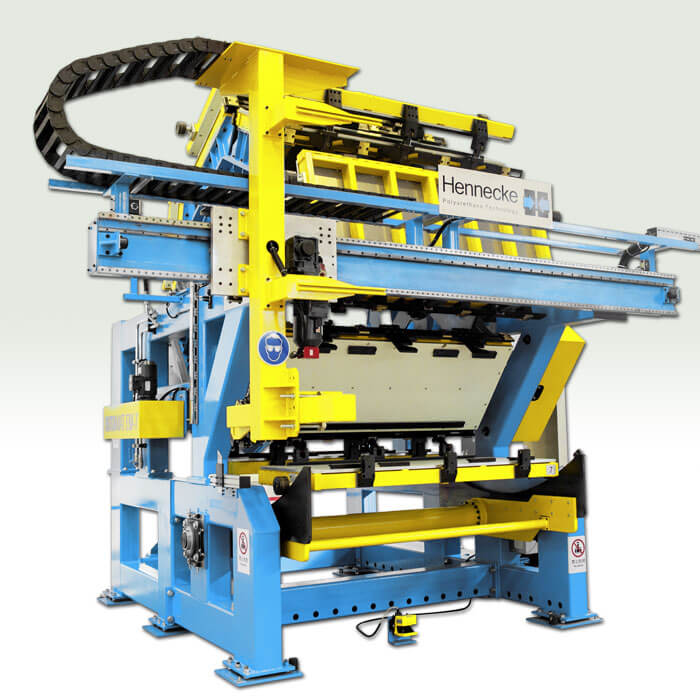

ROTAMAT EM

Efficient production of insulated door elements

ROTAMAT EM Polyurethane foaming lines enable the efficient production of insulated polyurethane door elements at an excellent price-performance ratio. The EM version is driven exclusively by low-noise and virtually maintenance-free electric motors. Among other things, a new design enables a...

More Information
ROTAMAT EM

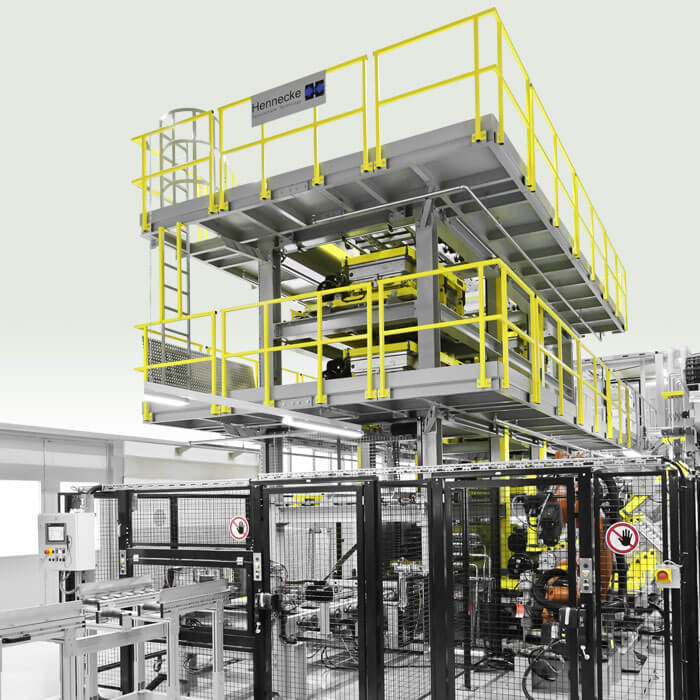

KTT door foaming line

Automated production of insulated door elements with different curing times

KTT

Automated production of insulated door elements with different curing times

The newly developed KTT foaming line for manufacturing insulated polyurethane door elements combines the advantages of a continuously operated circulation line with those of a stationary line. Disconnecting the operating line from the curing places enables improved operation of the line with...

More Information
KTT door foaming line

TOPLINE HK-TI

High-pressure metering machine for the production of cooling devices and applications in the field of technical insulation

TOPLINE HK-TI

High-pressure metering machine for the production of cooling devices and applications in the field of technical insulation

The TOPLINE HK-TI is fully tailored to the needs of the industry in the field of rigid foam applications, in particular insulating foam. The modern machine system has an excellent price/performance ratio as standard and is available in three sizes: as HK 270/270, HK 650/650 and HK 1250/1250....

More Information
TOPLINE HK-TI
